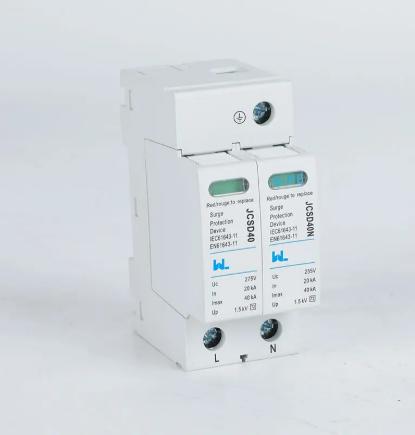

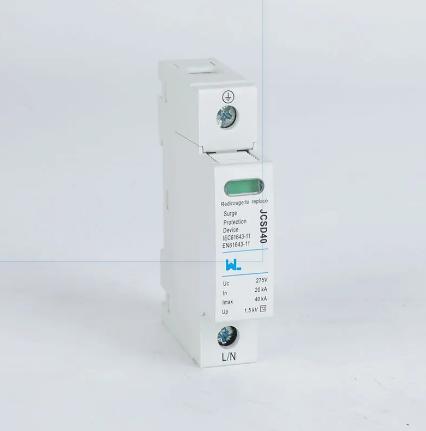

JCSD-40 SPD: Safeguarding Against Surge Damages and Ensuring Continuous Operations

Surge damages to a device cause loss of important information and data along with putting the devices to failure. Additionally, these faults lead towards extraction costs. The JCSD-40 surge protection device (SPD) helps eliminate the vertical spikes and transients that harm your entire network electrical systems and ensures the protection along with the system lifetime. The device is helpful for both commercial as well as residential applications. It assures that power disruptions do not hinder continuous processing.

With Modern Technology Comes Increased Security

With the incorporation of MOV or MOV+GSG technology, the JCSD-40 SPD is able to provide higher surges due to the device’s ability to soak the unwanted excess energy before it is able to be absorbed and break the equipment. It also neutralizes more dangerous threats like lightning surges and industrial motor running and stabilizes the system power. It will reduce the risks for the SPD’s built with the rigid standards of safety, quantity, and endurance burst inline with the IEC 61643-11 and EN 61643-11 standards, suitable for diverse applications.

Effortless Set Up with Space-Efficient Features

The JCSD-40’s SPD plug-and-play installation option is very user-friendly. It is extremely modular and compact, allowing it to be installed easily and conveniently into residential fuse boxes, commercial electrical panels, and even industrial settings. It is also mounted using a standardized DIN rail which arms and secures it on the pre-installed DIN rail. This mounting method is very efficient, preventing unwanted maintenance checks due to loose connections. This allows customers with lower knowledge of electric systems to configure the device in a short amount of time and without complications.

Unparalleled Efficiency for Maximum Dependability

The JCSD-40 SPD is used in 275V operation with nominal discharge current (In) of 20kA, maximum discharge current (Imax) of 40kA per path. It works well under 230V single-phase and 400V three-phase networks which makes it versatile for various power systems. Protection level (Up) is 1.5kV which ensures energy dissipation is efficient and lowering damage risks of sensitive electronic devices. This surge protector is designed with an admissible short-circuit current of 25kA which allows it to counteract the most powerful power disturbances.

Surge Protection For Residential, Office, and Industrial Applications

Nowadays, power surges can happen at any moment which can damage everything from televisions to gaming consoles. The JCSD-40 SPD offers protection in many different environments and proves to be an essential safety component for various applications.

Home: The JCSD-40 SPD surge protection device is meant to protect household appliances such as televisions, smart home, gaming, and kitchen appliances from unexpected surges.

Office: Computers, servers, printers, routers, and other telecommunications equipment are most used in the office setting. Having them powered with surge protection increases their reliability and performance.

Its versatility in residential, commercial, and industrial applications makes it an ideal product to purchase for those who want to shield their investments from the ever-changing scenario of power surges.

Construction that Lasts Through Tough Weather and is Built to Last

Like every other electric device, the JCSD-40 SPD exposes itself to more risk due to extreme temperatures and interferants, however, its design allows it to sustain -40 degrees Celsius to 85 degrees Celsius. In addition, with an IP20 protection rating, dust cannot penetrate nor can accidental contact occur, increasing the device’s durability and safety for the user.

The device also contains failsafe disconnection technology which, in the event of an extreme overload, will isolate the device from the power network and eliminate risks to the electrical system.

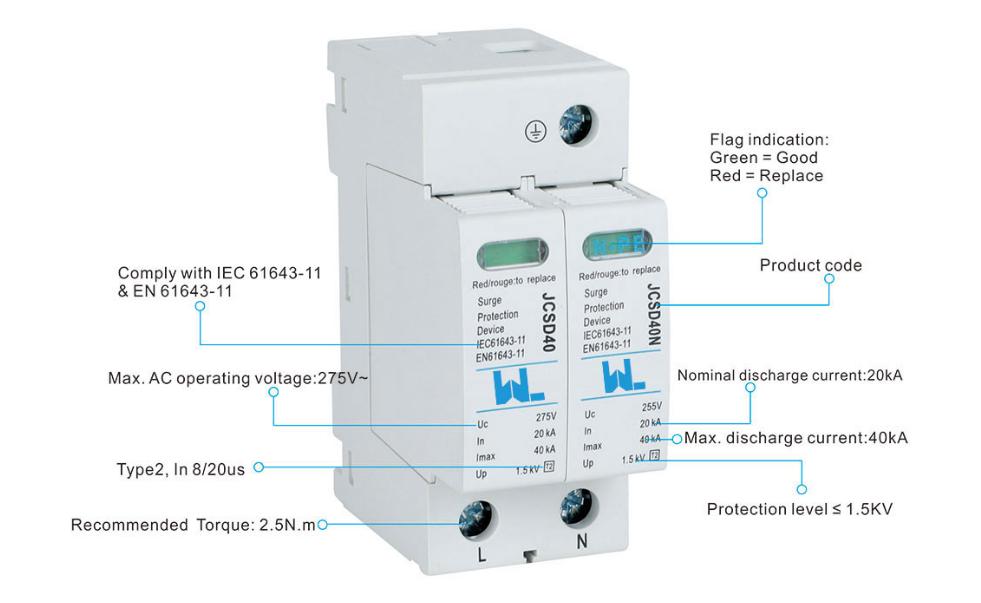

Detailed Technical Specs

For comprehensive information, the device JCSD-40 SPD’s specifications meet the maximum norms of industry standards:

• Type: 2
• Network Interface: single phase 230V, three phase 400V
• Max. AC Operating Voltage (Uc): 275V
• TOV Characteristics: 335V for 5 seconds withstand, 440V for 120 minutes disconnection, Protection
• Level Up: 1.5kV
• Residual Voltage: 0.7kV (L/PE at 5kA)
• Short-circuit Current Capacity: 25kA
• Failsafe: Automatic disconnection from AC network
• Mounting: symmetrical rail 35mm (DIN 60715)
• Fusing: 50 minimum – 125 maximum type gG
• Compliance: IEC 61643-11 / EN 61643-11.

Selecting the right surge protection device from the plethora of options available today can be difficult. Nevertheless, the JCSD-40 SPD device makes this remarkably easy. This device is capable of enduring hazardous power surges, lightning and other voltage spikes, making it ideal for homes, offices and industrial setups. With such striking features, it’s easy to wonder what makes the JCSD-40 SPD device a necessity for all households and modern electronics users. Let’s examine its features in depth.

Lightning hazards, electrical power fluctuation, power grid issues, surging and switching operations within the electrical system can all lead to a surge in electric power and damage your system beyond repair. This maneuver can shorten the life of your electronic devices, completely damaging them beyond repair or causing device failure.

Additional Uses

The JCSD-40 surge protection device (SPD) has boundless applications and is usable across a variety of fields and industries. Whether it is safeguarding voltage level fluctuations in a residential home, a corporate office, or an industrial facility, this SPD guarantees proficient protection.

Low Effort Installation and Monitoring

The JCSD-40 Surge Protection Device (SPD) is a user-friendly device that can be easily monitored and installed. Unlike complex systems which require extensive knowledge and expertise, this SPD has a Plug and Play modular system that guarantees ease with complex changes needing minimal to no knowledge.

Extra High Durability

JCSD-40 SPDs have to be reliable for long periods of time and must be effective even in harsh environments and extreme exposure to electricity, which is why durability is important. These devices have an extremely high temperature tolerance so they can function normally even in regions known for their wild weather patterns. This device will not become inefficient in scorching weather, freezing conditions, or while in humid places.

Cost-Effective Practices

If not handled in a proper manner, electrical surges can damage appliances, computers, and heavy machinery which can lead to the expenditure of thousands of dollars worth of repairs. Undoubtedly, unexpected repairs and losses could lead to major budget deficits. Surges could also result in equipment failure and downtime, which leads to loss of income for business.

Purchase your JCSD-40 SPD today!

Being proactive in protecting your office, home, and industrial equipment today is the best thing you can do, so don’t wait for a power surge to try and retrofit things afterward. And while protection from power surges is a guarantee, peace of mind is another of many wonderful things that comes with using JCSD-40 SPD. With the ability to guarantee uninterrupted operation, take the plunge, and order for your JCSD-40 SPD today.
