JCB1-125 Circuit Breaker: Reliable Short-Circuit and Overload Protection for Industrial and Commercial Applications

The JCB1-125 circuit breaker is designed to provide excellent short-circuit and overload protection, making it an essential component in industrial and commercial electrical fittings. Its 6kA/10kA breaking capacity ensures electrical system reliability and safety. Constructed from high-grade materials, the JCB1-125 is built to operate reliably and consistently even under harsh conditions. Furthermore, its adherence to IEC 60898-1 and IEC60947-2 standards signifies its quality and versatility across various applications. This circuit breaker comes in different configurations and capacities to suit diverse current requirements, performing a wide range of electrical protection functions.

Key Features of JCB1-125 Miniature Circuit Breaker

The JCB1-125 miniature circuit breaker boasts qualities that make it valuable across various industrial uses. It’s specifically developed for overload and short-circuit protection, safeguarding electrical systems from danger. It also features current ratings ranging from 63A to 125A, making it suitable for most applications.

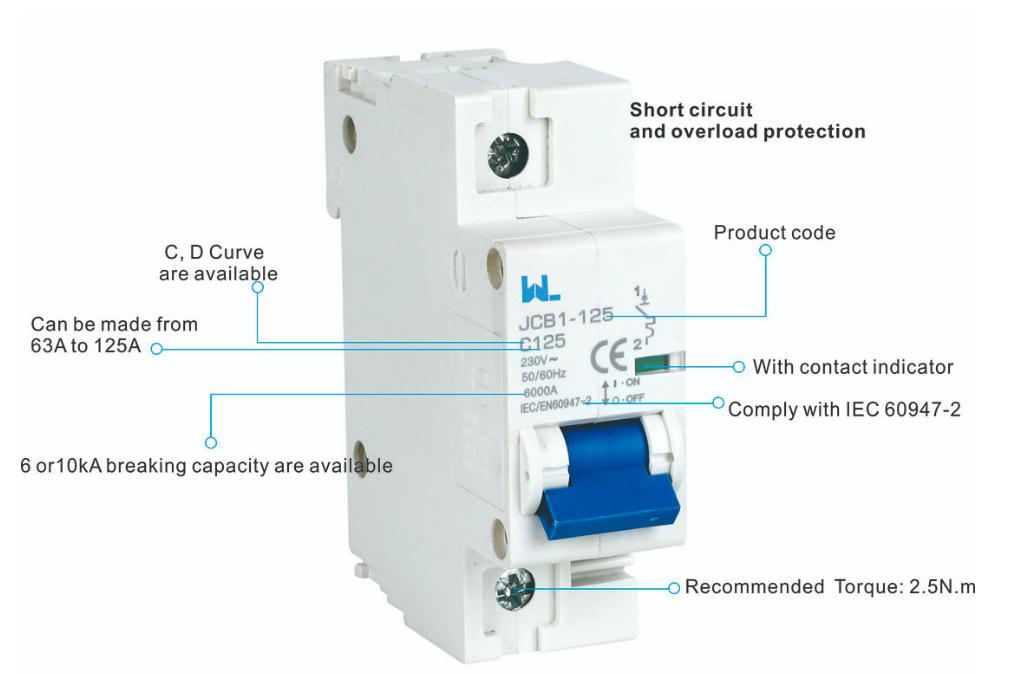

A remarkable characteristic is its superior breaking mechanism of 6kA/10kA, enabling it to handle electrical faults exceptionally. The breakers are available in various models, including 4 Pole, 3 Pole, 2 Pole, and 1 Pole. A contact position indicator is provided, offering users a convenient way to observe the breaker’s status. The unit’s DIN rail mountability also ensures straightforward installation.

Key benefits of the JCB1-125 miniature circuit breaker are:

• 6kA/10kA high breaking capability for enhanced security.
• Compliance with international standards such as IEC 60898-1 and IEC60947-2.
• Suitable for a variety of utility applications with current ratings of 63A to 125A.

Technical Specifications and Performance

The JCB1-125 circuit breaker is built for the highest possible electrical performance and safety. It operates at rated voltages of 110V, 230V/240V (for 1P and 1P+N types), and 400V (for 3P and 4P types). The breaker has a rated impulse withstand voltage of 4kV, protecting against electrical surges and oscillations.

Additionally, it features thermo-magnetic release characteristics with C and D curves, ensuring effective performance under various load conditions. The breaker’s insulation voltage is 500V, and its IP protection level is IP20, allowing for safe operation in different environments. It boasts a mechanical life of 20,000 cycles and an electrical life of 4,000 cycles, making it a robust solution for continuous use.

Another prominent feature is its secure terminal connection, which is compatible with pin and cable-type busbar mounts. The breaker can be mounted on a 35mm DIN rail and includes a quick clip device for easy mounting. Its compact size and tough build make it highly popular among industrial and commercial clients.

Applications of the JCB1-125 Circuit Breaker

The JCB1-125 mini circuit breaker is widely used across all industries due to its superior safety features and breaking ability. It’s extensively employed in factories, office complexes, and homes where reliable circuit protection is essential. The breaker efficiently guards against electrical overloading and short circuits, preventing potential damage such as fire and equipment failure.

In industrial settings, the JCB1-125 is applied in power centers, warehouses, and factories. Its high current rating capability makes it suitable for electrical panels and heavy machinery. In commercial applications like malls, office buildings, and data centers, it ensures a constant and stable power supply.

For household applications, the JCB1-125 breaker is used in residential electrical panels to protect cables and appliances from electrical failures. Its certifications for both commercial and residential safety standards make it a preferred choice for many power management applications.

Installation and Safety Considerations

Proper installation of the JCB1-125 mini circuit breaker is crucial for optimal performance and safety. It’s simple to install on a 35mm DIN rail and easily integrates into typical electrical enclosures. Installation must only be performed by a qualified electrician to comply with local electrical codes and regulations.

Safety must be a top priority when handling electrical devices. The JCB1-125 breaker features a contact position indicator, providing a visual cue of the breaker’s status to prevent accidental contact with live circuits. The breaker must be inspected regularly to ensure it’s performing as expected and to detect any signs of wear or potential issues before they arise.

Comparison with Other Circuit Protection Devices

When choosing circuit protection devices, consider the specific needs of your electrical installation. The JCB1-125 stands out due to its high breaking capacity of 6kA/10kA and compliance with numerous international standards, making it ideal for both industrial and home use.

Compared to normal power strips or low-capacity circuit breakers, the JCB1-125 offers superior overload and short-circuit protection. While power strips provide extra outlets, they cannot offer the heavy-duty protection of devices like the JCB1-125. For effective and comprehensive circuit protection, investing in a high-quality miniature circuit breaker such as the JCB1-125 is advisable.

With the addition of these sub-headings, the text is in a better position to define the JCB1-125 miniature circuit breaker, for example, steps to install, safety considerations, and in how it differs from other items.

Maintenance and Longevity

The JCB1-125 circuit breaker was engineered for a long lifespan: an electrical lifespan of up to 5,000 cycles and a mechanical lifespan of up to 20,000 cycles. Regular maintenance is crucial to ensure optimal performance and extend its lifespan. This involves checking for signs of wear, verifying that the contact indicator position is correct, and ensuring the breaker operates within its specified temperature range of -30°C to 70°C. These practices will ensure the circuit breaker’s reliability and continuous service.

Conclusion

The JCB1-125 miniature circuit breaker is a highly effective and reliable circuit protective device. Its increased breaking capacity, conformity to international safety standards, and heavy-duty construction make it most appropriate for industrial and commercial applications. Its versatility, available in various configurations and ampere ratings, ensures ready compatibility with all types of electrical installations.

Whether installed in factory workshops, office buildings, or residential homes, the JCB1-125 offers superior short-circuit and overload protection. Its compact size, DIN rail mounting support, and contact position indication make it the choice of professionals. Investing in a quality circuit breaker like the JCB1-125 guarantees long-term electrical safety and efficiency.
