RCBO: Your Ultimate Protection Against Electrical Faults

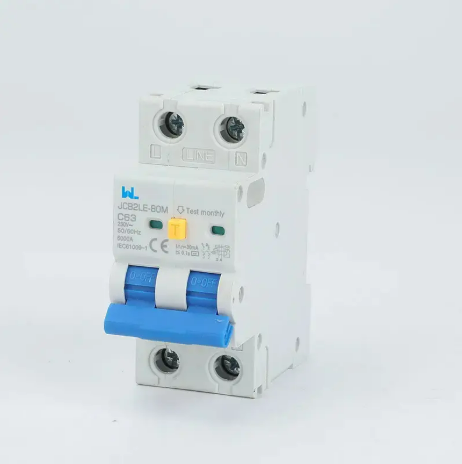

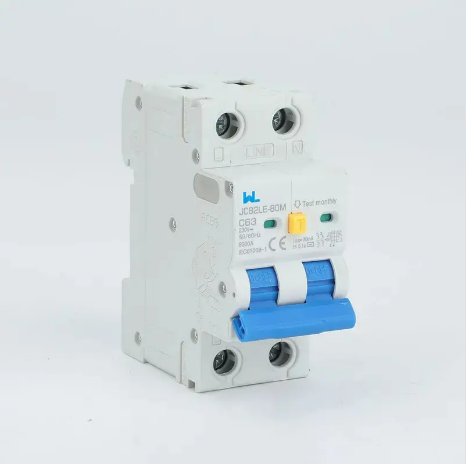

The JCB2LE-80M RCBO (Residual Current Circuit Breaker with Overload) is a critical product utilized to guard electrical circuits in various applications like industrial, commercial, high-rise buildings, and residential homes. The product efficiently guards against short circuits, earth faults, and overloads and is a vital protective device found in consumer units and distribution boards. W9 Group Technology Electronic Co,. Ltd., founded in 2024, manufactures this RCBO. Headquartered in Yueqing Wenzhou, a Chinese city famous for its household electrical appliances, the company is. Quality service at affordable costs is W9 Group’s strength, and its products are IEC international standard certified.

Comprehensive Protection Features

The JCB2LE-80M RCBO is defined by its broad spectrum of protection features. It protects through earth fault protection, overloading, and short circuit protection. The device can de-energize the phase and neutral connections in such a way that it can function perfectly even in the event of earth leakage faults even when faulty connections exist. The electronic construction of the JCB2LE-80M has a filtering element in such a way that spurious tripping due to transient voltages and currents can be prevented.

JCB2LE-80M RCBO has a two-pole switch that disconnects the live and neutral conductors for improved security. It is Type AC to disconnect alternating current and Type A to disconnect alternating and pulsating DC. The RCBO has a residual current circuit breaker and a miniature circuit breaker that trips on line voltage and some rated tripping currents to select. Its internal paths can sense the currents without fault, whether they are harmless residual currents or hazardous residual currents. JCB2LE-80M offers indirect protection of the individuals in the way of exposure of the live parts being connected to an earth pole. It also offers overcurrent protection for household, commercial, and other similar installations such that safety is offered against earth fault current danger leading to fire. It is rated 6kA extendable to 10kA, and the sensitivity is 30mA. It is thus highly appropriate for diverse applications. The product also has a test switch for easy reset after rectification of fault.

Advanced Electronic Design and Functionality

The JCB2LE-80M RCBO has an advanced electronic design that improves its functionality and reliability. This RCBO electronic model is equipped with a filtering system that does not allow unwanted tripping by transient voltages and currents and thus has vast applications in regions with high electrical fluctuations. Both residual current devices (RCD) and miniature circuit breakers (MCB) incorporated in a single compact device ensure maximum protection of the circuit against earth leakage currents as well as overcurrent situations. This design guards both people and property as well as minimizing the risk of electrical fire.

Secondly, the two-pole switching feature of the JCB2LE-80M RCBO ensures full isolation of faulty circuits by disconnecting both live and neutral conductors simultaneously. This feature ensures the device remains effective while still offering vital earth leakage protection even in instances of improper connections. Neutral pole switching reduces installation and commissioning test time significantly, and therefore it is the industry’s favorite. JCB2LE-80M RCBO is specifically made to meet IEC 61009-1 and EN61009-1 standards to guarantee conformance to world safety and quality standards.

Flexible Applications in Diverse Industries

JCB2LE-80M RCBO has numerous applications in diverse industries that make it extremely flexible for different environments. It is employed in industrial, commercial, high-rise building, and residential settings to offer complete electrical safety. RCBO can be used in consumer units and distribution boards and is best suited for applications where high protection against earth faults, overloads, and short circuits is needed. Its versatility renders it a number-one choice for new work construction, replacing already installed electrical circuits, and as a dependable circuit breaker for consumer devices or electrical panels.

Its definite uses include the protection of sub-main circuits, power and lighting circuits, motor starting uses, and electrical office equipment. It is also highly effective in industrial plants, rendering electrical installations safe. The responsiveness of the JCB2LE-80M RCBO to as low as 30mA earth leakage currents is another form of protection against possible earth circuit fire hazards. Having a test switch for automatic reset after rectification of faults ensures constant power supply and reduces downtime for electricity services. Generally, the quality of appropriateness and high level of protection of the JCB2LE-80M RCBO makes it the best choice to improve electrical reliability and safety in various settings.

Customizable Trip Sensitivity and Curve Options

The JCB2LE-80M RCBO has a unique feature of customizable trip sensitivity and curve options. The trip sensitivity can be adjusted to 30mA, 100mA, or 300mA, allowing the best level of protection for different circuits and loads. The adjustability feature provides users with the ability to set the protection according to specific needs, optimizing the device for performance in different electrical systems.

In addition to trip sensitivity adjustment, the JCB2LE-80M RCBO has both B curve and C curve tripping characteristics. Both curves offer specialized protection according to installation requirements. Resistive loads and small inrush current applications are well addressed using B-curve RCBOs, while large inrush current applications and inductive loads use C-curve RCBOs. In addition, the availability of Type A (for pulsed DC currents and AC currents) and Type AC configurations ensures compatibility with a variety of electrical systems.

Enhanced Installation and Operating Efficiency

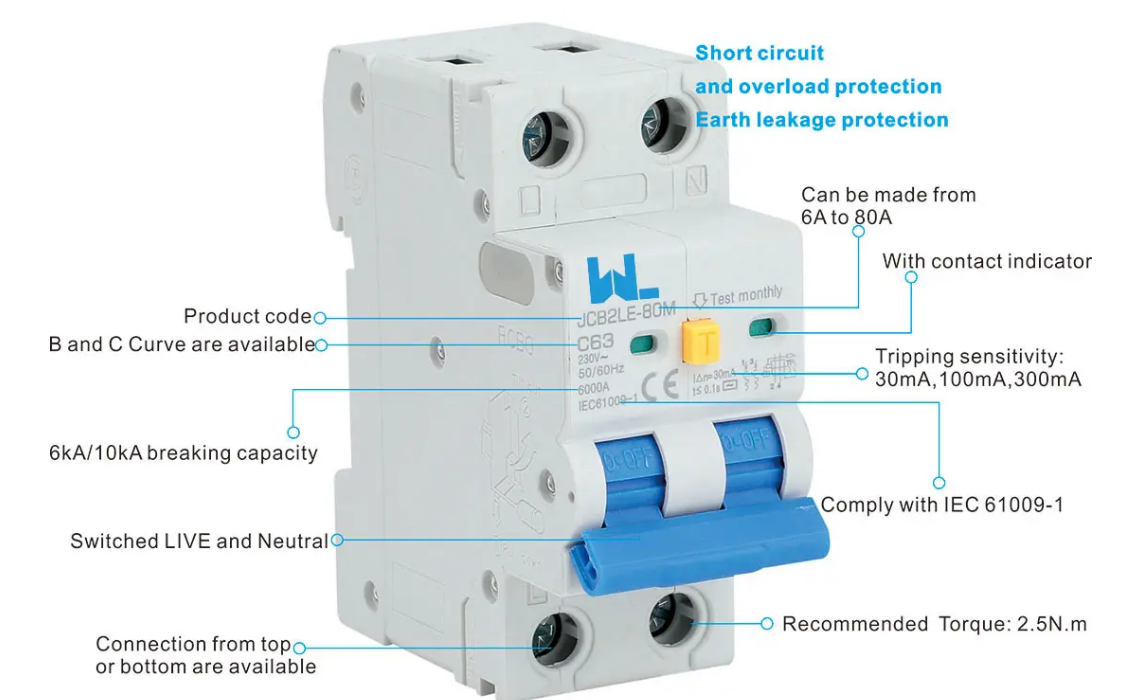

JCB2LE-80M RCBO has features that simplify installation and operation. The switching neutral pole is so easy to install and conduct commissioning test, hence overall installation is a piece of cake. This aspect apart from being time-efficient makes it a joy to use by installers. Design has features to be mounted on 35mm DIN rail, hence there is more flexibility in positioning and orientation. Top and bottom mounting also facilitate easier installation. A number of terminal connection methods like cable, U-type busbar, and pin-type busbar connection, which offer increased convenience of circuit connections. 2.5Nm recommended torque facilitates safe and secure terminal connection, which eliminates risks due to loose or faulty connections to a large extent. Visual confirmation for ON from contact position indicator is also provided. These characteristics as a whole make the installation easier and monitoring easier to operate, thus making the JCB2LE-80M RCBO an easy-to-use and effective option.

Compliance with International Standards and Safety

JCB2LE-80M RCBO is subject to rigorous compliance specifications, being IEC 61009-1 and EN61009-1 international standards compliant for use. Extra testing and confirmation have been performed to ensure ESV requirements specific to RCBOs, prioritizing their reliability and safety. The device’s design features various safety aspects, such as double-pole switching to ensure complete separation of defective circuits, and safety against earth leakage faults even with improper connections.

The components of the RCBO are made from fire-resistant plastic materials that can withstand abnormal heat and heavy impact. It will automatically open the circuit when earth fault or leakage current is present and surpasses the rated sensitivity regardless of power supply and line voltage. The item is also RoHS compliant as per Directive 2002/95/EC, which prohibits the use of dangerous substances like lead, mercury, and cadmium. This environmental responsibility is also reflected in compliance with Directive 91/338/EEC so that eco-friendly and sustainable processes are used during production.

Overall, W9 Group Technology Electronic Co Ltd.’s JCB2LE-80M RCBO is cutting-edge electrical protection technology that provides full protection for earth faults, overloads, and short circuiting. Since it has an adaptable design, it can be used in many different applications ranging from industrial use to commercial settings, high-rise buildings, to domestic homes. With its flexible trip sensitivity, double-pole switching, and global standard conformity, the JCB2LE-80M RCBO ensures effective and safe performance with guaranteed safeguarding of lives and investments. Its security-oriented and creative design makes it an indispensable component for contemporary electric systems.
