How Effective is the JCSD-60 30/60kA Surge Protector in Shielding Electrical Systems?

Surge protection devices (SPDs) are usually the first in line to protect electrical systems from damaging voltage spikes. These unprecedented surges occur due to lighting spikes and power outages and can compromise connected devices, sometimes causing irreversible and irreparable damage. The JCSD-60 SPD diverts such excess electrical current from sensitive equipment, saving you hundreds of dollars in device repairs, replacements, and downtime. This article reviews the JCSD-60 30/60kA Surge Protector, including its features, performance, pros, and cons.

What is the JCSD-60 30/60kA Surge Protection Device?

The JCSD-60 30/60kA Surge Protector is a specially designed device that absorbs and dissipates excess electrical energy from electrical systems. This device is DIN-rail mountable for effortless installation. Besides, it uses an advanced Metal Oxide Varistor (MOV) with Gas Spark Gap (GSG) technology to handle high-energy surges more efficiently and improve performance in high-surge environments. This device in your electrical system allows you to use your devices carefree without worrying about possible damage.

The JCSD-60 30/60ka Surge Protection Device‘s Features

The JCSD-60 30/60kA Surge Protection device is a cut above most models-and justifiably so. The product’s engineering design ensures its technology and features efficiently serve the device’s general purpose. Here are the device’s features you should know about:

Multiple Configuration Options

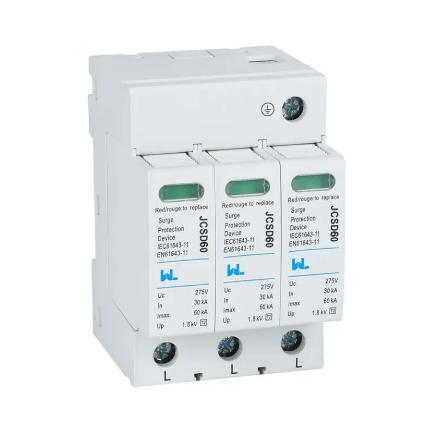

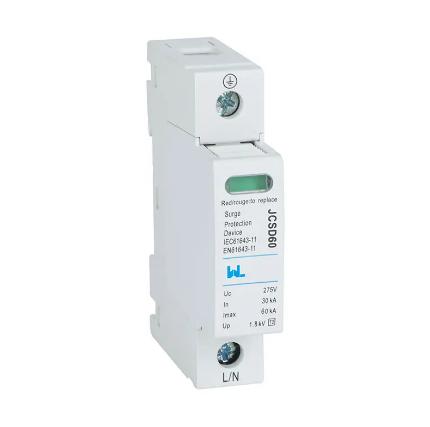

This device offers various configurations, including 1 pole to protect single-phase systems from line-to-neutral surges and 2P + N that protects single-phase systems with a neutral connection. Moreover, its 3 Pole, 4 Pole, and 3P + N configurations offer users some much-needed flexibility to select appropriate models based on their electrical networks.

30ka (8/20 µs) Per Path Nominal Discharge Current (In)

This feature gives the device some stability to handle expected surge events without degrading. Rated 30kA (8/20 µs) per path, it can repeatedly withstand moderate surges without compromising performance. This feature allows the JCSD-60 30/60kA Surge Protector to protect electrical systems in environments prone to voltage fluctuations effectively.

60ka (8/20 µs) Maximum Discharge Current (Imax)

Imax refers to the highest surge level the SDP can handle. Rated at 60kA (8/20 µs), this SPD is ideal for industrial facilities and areas experiencing frequent lightning activity since they can efficiently handle severe electrical surges.

Plug-In Module Design with Status Indication

This SDP comes with a status indication system to provide a visual check. The green indicator signifies that the device functions optimally, while the red prompts you to replace it after wear and tear. But that’s not all; this SDP’s plug-in module design makes installation and maintenance a breeze.

Optional Remote Indication Contact

If you’re looking for real-time surge protection monitoring, this surge protector is your go-to. It offers an optional remote indication contact for enhanced monitoring, allowing you to integrate it into building management or industrial control systems. This exceptional feature is handy in extensive facilities, enabling teams to identify and address issues quickly.

Compatibility with TN, TNC-S, TNC, and TT Systems

The JCSD-60 SPD supports multiple grounding configurations like Terre Neutral (TN) for industrial and commercial installations grounding where the neutral occurs at the transformer. Its TN Combined-split (TNC-S) grounding provides additional safety by separating the neutral from protective earth conductors. The TN Combined (TNC) and Terre Terre (TT) configurations further ensure wider compatibility. That makes this surge protector a versatile choice for various electrical environments.

Pluggable Replacement Modules

This device’s pluggable module design allows you to effortlessly replace individual components without installing the entire SPD. If a module exhausts its lifespan, swap it out in seconds to reduce downtown and prevent incurring further costs.

Technical Specifications

Thanks to its robust electrical and environmental specifications, the JCSD-60 SPD reliably meets your electrical system’s surge protection needs. This device supports single-phase (230V) and three-phase (400V) networks, making it ideal for commercial, industrial and residential installations. It also has a high discharge capacity of 80kA, wide voltage tolerance, and a robust short-circuit withstanding capability, ensuring long-term durability. The SPD’s IP20-rated enclosure, broad operating temperature range of -40°C to +85°C, and secure screw terminal connections of 2.5 to 25 mm² make it a more reliable fit for various environments.

Compliance and Safety

Most users worry about their SPDs’ compliance and safety standards-you don’t have to with the JCSD-60 SPD. This surge protector meets EN 61643-11 and IEC 61643-11 standards to guarantee safety and reliability. Its engineers designed it to intuitively disconnect from AC networks during excessive electrical charges, preventing system overloads. Its fuses range from 50A to 125A, ensuring added protection against short circuits.

Advantages of the JCSD-60 30/60kA Surge Protection Device

The JCSD-60 SPD positions itself as one of the most reliable electrical surge protectors for the advantages it offers:

• High Surge Handling Capacity – This SPD’s high maximum discharge current of 60kA can handle significant electrical surges. This device is a must-have if your electrical environment is of high voltage fluctuations.
• Modular Replaceable Design – Planning to disassemble your electrical system to replace your SPD completely? No need to. This device’s plug-in module allows for seamless maintenance and replacement without requiring you to dismantle anything.
• Broad Compatibility – Unlike some models, this SPD works with various electrical systems and configurations, ensuring broad applicability.
• Clear Visual Indicators – Monitoring your SPD’s performance is more straightforward with the JCSD-60 SPD. It provides a built-in indicator that allows you to monitor your device’s status, reducing guesswork.

Potential Drawbacks

Like any other electrical device, the JCSD-60 SPD may have its drawbacks that include the following:

• Higher Initial Cost – Unlike conventional surge protectors, the JCSD-60 SPD may require some significant initial investment. Nonetheless, you can rest assured that its long-term benefits will eclipse the costs.
• May Require Professional Installation – The JCSD-60 SPD may be easy to install, but involving a seasoned expert can ensure optimal placement and configuration. Although doing that may require more time and effort, its safety assurance can be worth it in the long haul.

Conclusion

The JCSD-60 surge protection device ensures maximum electrical system and electronics protection. Its engineers have rigorously tested it for quality, and can assuredly withstand any damaging power surge. There’s no better way to guarantee ultimate power surge protection than installing an SPD. But don’t just pick any you can find; get yourself the JCSD-60 surge protection device to keep your electrical system and electronics perpetually safe.
