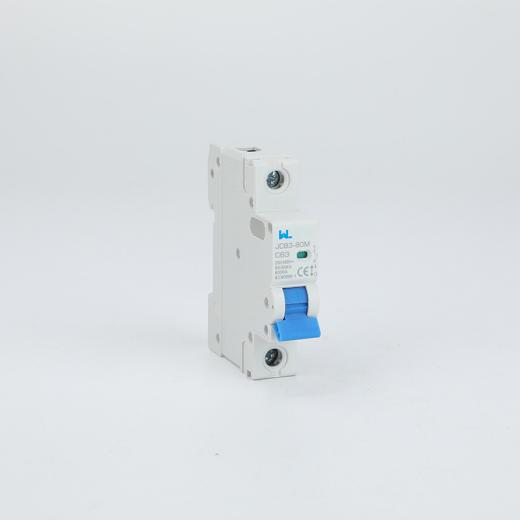

Ensure electrical safety with the JCB3-80M Micro Rcd Circuit Breaker

Complying with the IEC/EN 60898-1 international standard, it provides three-stage tripping curve selection of B/C/D, accurately matching the needs of home, commercial and industrial scenarios. The 6kA high breaking capacity ensures reliable protection, and the 4mm contact gap has both isolation function. The status indication is clear, the operation is safe and convenient, and it is a professional-grade circuit to prevent the risk of Rcd Circuit Breaker overload and short circuit.

In the field of electrical safety, reliable circuit protection is essential. JCB3-80M Miniature Circuit Breaker (MCB) is the first choice for protecting electrical equipment from overload and short circuit. Designed to meet the strict standards of IEC 60898-1 and EN 60898-1, these Rcd Circuit Breakers ensure that domestic and industrial applications are protected under any working conditions. Its rugged design and compliance with international standards make it an indispensable component in any electrical equipment.

JCB3-80M miniature circuit breakers are designed to provide efficient solutions for a variety of applications from residential to small commercial and industrial environments. With a short-circuit breaking capacity of up to 6kA, these Rcd Circuit Breakers can handle larger electrical loads, ensuring the safety and reliability of connected equipment. Whether protecting home appliances, office equipment or industrial machinery, the JCB3-80M series can provide versatile solutions to meet the diverse needs of users.

One of the main features of the JCB3-80M miniature circuit breaker is that it offers different trip curves: B, C and D. The B curve circuit breaker is designed to trip when the current exceeds 3-5 times the rated current, which is ideal for cable protection. The C curve Rcd Circuit Breaker trips at 5-10 times the rated current and is suitable for domestic and commercial appliances, including transformers and IT equipment. For applications involving motors, the D curve Rcd Circuit Breaker trips at 10-20 times the rated current and has a high resistance, ensuring that the motor is fully protected from overloads.

In addition to its protective functions, the JCB3-80M miniature circuit breaker also features a clear operating status indicator, allowing users to easily determine whether the circuit breaker is open or closed. The operating switch can be locked in either position without interfering with the trip mechanism, which improves the convenience and safety of operation. In the closed position, the 4mm contact gap allows the miniature circuit breaker to be used as a single-pole disconnect switch where appropriate, further enhancing its versatility in a variety of electrical applications.

The JCB3-80M miniature circuit breaker is a reliable and efficient electrical protection solution. Its compliance with international standards, wide range of applications and multiple trip curve options make it an integral part of ensuring electrical safety. Whether for residential, commercial or industrial use, the JCB3-80M miniature circuit breaker ensures that your electrical system is protected from overloads and short circuits.
