Your Electrical Guardian: The Mighty Miniature Circuit Breaker

Meet the unsung hero inside your walls! The JCB3-80M miniature circuit breaker silently protects your home from electrical dangers. Learn how this clever device acts as a switch, a guardian, and a lifesaver.

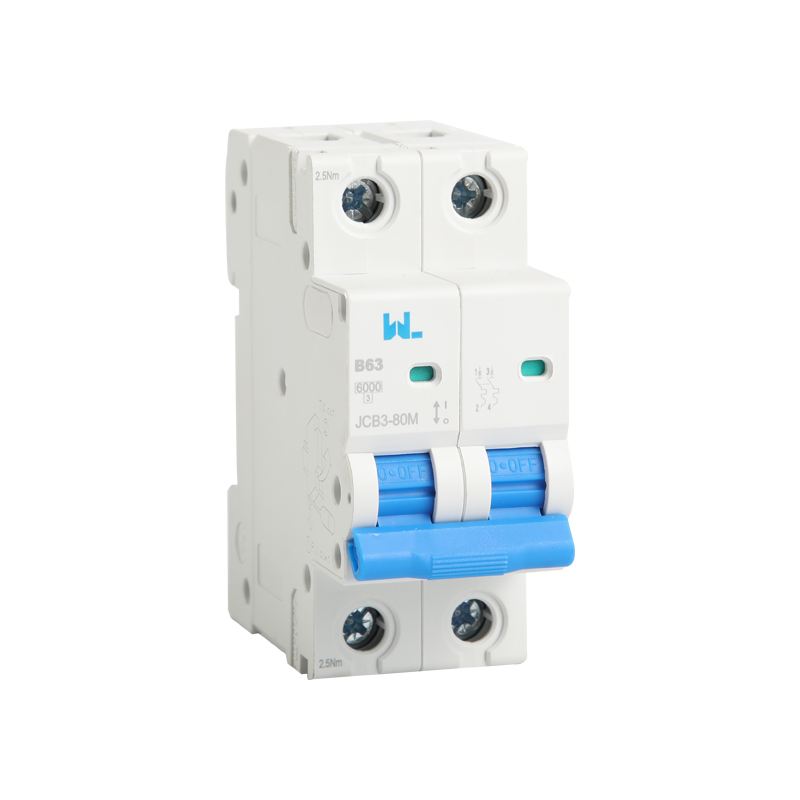

Think of your home’s electrical system as a busy highway. Electricity zips along like cars, powering your life. Now, imagine if there were no traffic lights or brakes—chaos! That’s where an unsung hero comes in: the Miniature Circuit Breaker (MCB), like the JCB3-80M. It’s not just a switch; it’s your home’s vigilant electrical guardian.

Tucked away in your fuse box, this clever device has a big job. Its primary mission? Protection. It constantly monitors the flow of current. If a sudden, massive surge happens—like a “short-circuit” where electricity takes a dangerous shortcut—the JCB3-80M leaps into action. It “breaks” the circuit in milliseconds, stopping the flow to prevent wires from overheating and potentially causing a fire. That’s its superhero move against catastrophic faults.

But it’s also a watchful protector against slower threats. When you plug in too many devices, the circuit can become “overloaded,” like a highway at rush hour. The wires get stressed and hot. The MCB senses this sustained excess and disconnects the circuit, giving it a necessary coffee break to cool down. This dual role makes it essential for safety in every home, shop, and factory.

What’s fascinating is its intelligence. Not all electrical equipment starts the same way. A light bulb needs a small jolt, while a motor or transformer needs a big, initial burst of power (inrush current). The JCB3-80M comes with different “tripping curves”—B, C, and D—to handle these personalities. Think of them as different sensitivity settings:

· Curve B (The People Protector): Super sensitive, perfect for long home circuits, prioritizing personal safety.

· Curve C (The Appliance Ally): The standard choice for most household outlets and lighting, handling common inductive loads.

· Curve D (The Heavy-Duty Specialist): Built for the tough guys, like machines with motors that start with a powerful grunt.

Choosing the right MCB isn’t just technical; it’s about creating a safe, resilient electrical ecosystem. The JCB3-80M, with its reliable 6kA breaking capacity, is a robust choice designed for this very purpose. It ensures that the invisible force powering your world remains a faithful servant, not a hidden hazard.

So, the next time you reset a “tripped” switch in your fuse box, remember—it’s not an inconvenience. It’s your mighty miniature guardian, the JCB3-80M MCB, just doing its job to keep your home safe and sound.
