Technical Specifications and Applications of Rcd Circuit Protection Devices

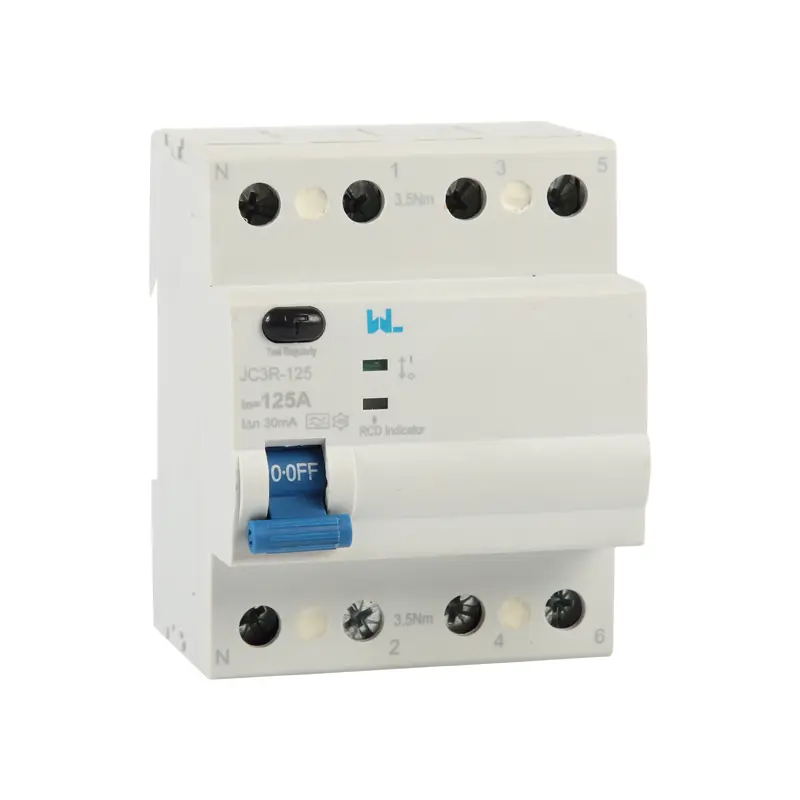

In modern electrical installations, safety and reliability are paramount. Rcd Circuit Protection serves as a critical component in preventing electric shock and reducing fire risks caused by earth leakage currents. Devices like the JC3R-125 Residual Current Device exemplify the application of this essential protection technology, designed to meet rigorous standards for various residential, commercial, and industrial environments.

The JC3R-125 is an electromagnetic-type RCD, which ensures its operation is independent of the supply voltage, providing reliable protection even in challenging electrical conditions. This type of Rcd Circuit Protection offers robust performance with breaking capacities of 6kA or 10kA, capable of interrupting fault currents effectively. Its rated current extends up to 125A, making it suitable for a wide range of circuit applications where higher loads are present.

Flexibility in configuration is a key feature of this device. It is available in both Type A and Type AC variants, allowing it to respond to different forms of residual currents, including pulsating DC components. Multiple tripping sensitivity options 30mA, 100mA, and 300mA enable precise matching to specific protection requirements, whether for personal protection against shock or for equipment and fire prevention. This adaptability enhances the utility of this Rcd Circuit Protection solution across diverse scenarios.

Installation convenience is considered through design features  the option for top or bottom connection, facilitating easier integration into various distribution board layouts. Compliance with international standards IEC 61008-1 and EN 61008-1 confirms that the device meets established safety, performance, and durability benchmarks. These specifications ensure that the Rcd Circuit Protection provided is both dependable and recognized in global markets.

The JC3R-125 embodies the core principles of effective Rcd Circuit Protection through its electromagnetic design, configurable sensitivity, and high breaking capacity. It addresses the need for reliable earth fault protection in circuits up to 125A, contributing to safer electrical systems. Selecting such a device is a fundamental step in designing installations that prioritize human safety and asset protection against the hazards of leakage currents.
