B, C, and D Curves in Miniature Circuit Breakers: Specialized Guardians of the Electrical Circuit

This article explains the key differences and common features of the B, C, and D tripping curves in Miniature Circuit Breakers (MCBs), detailing how their unique response characteristics determine their role in protecting everything from home appliances to industrial machinery.

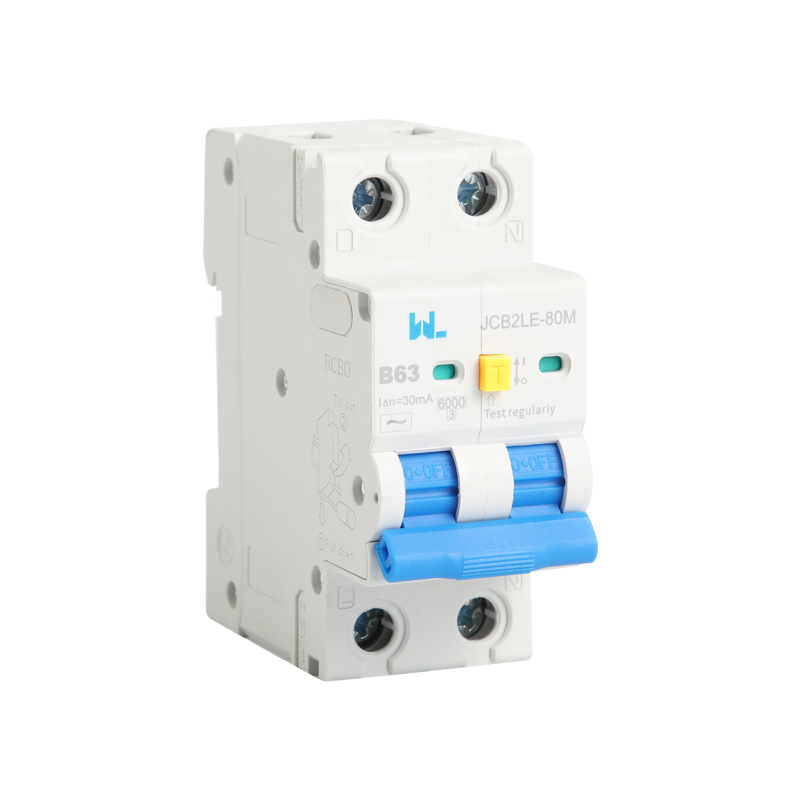

1. B Curve: The Sensitive Home Guardian

Trip Range: Its magnetic trip activates between 3 to 5 times its rated current (3-5 In).

Purpose & Character: The B-curve is the most sensitive of the three. It is designed for maximum safety for persons and cables, making it ideally suited for circuits with primarily resistive loads. These are devices that draw almost no inrush current upon startup, such as incandescent lighting, heaters, computers, and televisions.

Typical Applications:

Residential Homes: It is the preferred choice for final circuits like lighting and socket-outlets in homes, where connected devices have low startup currents and rapid response to faults is critical.

Commercial Buildings: Used in lighting distribution boards and for final socket-outlet circuits.

Advantage: Its high sensitivity ensures the fastest possible disconnection in the event of a fault, minimizing the risk of electric shock and arc flash hazards.

2. C Curve: The General-Purpose All-Rounder

Trip Range: Its magnetic trip activates between 5 to 10 times its rated current (5-10 In).

Purpose & Character: The C-curve strikes a perfect balance between sensitivity and tolerance. It allows for a significantly higher instantaneous current than a B-curve breaker before tripping. This characteristic is specifically designed to handle the common “inrush current” or surge current produced by inductive loads. This surge can be several times the normal operating current but lasts only for a few cycles.

Typical Applications:

Homes & Commerce: It is the ideal choice for protecting appliances with small motors, such as air conditioners, refrigerators, washing machines, and small pumps. Using a more sensitive B-curve breaker for these could lead to “nuisance tripping” every time the appliance starts up, while the C-curve tolerates this normal, brief surge.

Distribution Systems: Often used as a sub-distribution breaker.

Advantage: Excellent versatility. It provides effective cable protection while reliably avoiding unwanted trips caused by the normal startup of common inductive appliances, making it the most widely used type.

3. D Curve: The Rugged Industrial Specialist

Trip Range: Its magnetic trip activates between 10 to 20 times its rated current (10-20 In).

Purpose & Character: The D-curve offers very high resistance to tripping from inrush currents. It is specifically engineered for heavy-duty industrial equipment that generates very high inrush currents upon startup.

Typical Applications:

Industrial Environments: Commonly used for protecting large motors, transformers, industrial welding equipment, and high-intensity discharge (HID) lighting like sodium vapor lamps. The startup current for these devices can be exceptionally violent, often exceeding 10-12 times their rated current.

Special Applications: Some equipment with large input filter capacitors can also draw very high charging currents, necessitating a D-curve breaker.

Advantage: It can withstand the harsh starting conditions of heavy machinery, ensuring production processes can begin without interruption. However, its relative lower sensitivity makes it unsuitable for general domestic use, as it may not disconnect quickly enough in a fault situation, posing a safety risk.
