A Technical Overview of Surge Protector Breakers for Photovoltaic Systems

In the design and safety protection of modern photovoltaic (PV) power generation systems, surge protection is a critical component. The Surge Protector Breaker serves as the core element within this protective framework, specifically engineered to safeguard solar power supply networks from transient overvoltages caused by lightning strikes or grid operations. This article will focus on a device rated for 1000V DC systems, analyzing its technical characteristics and protective mechanisms.

The core technology of this type of Surge Protector Breaker is based on the application of high-performance metal oxide varistors (MOVs). These varistors possess precise voltage threshold characteristics, exhibiting high impedance under normal system operating voltages (1000Vdc) and thus not affecting the circuit. Upon detecting a dangerous surge voltage, their resistance drops dramatically within nanoseconds, diverting the overcurrent to ground. This device can be configured to provide common-mode protection (line-to-ground) or differential-mode protection (line-to-line), offering comprehensive coverage against different overvoltage threat paths.

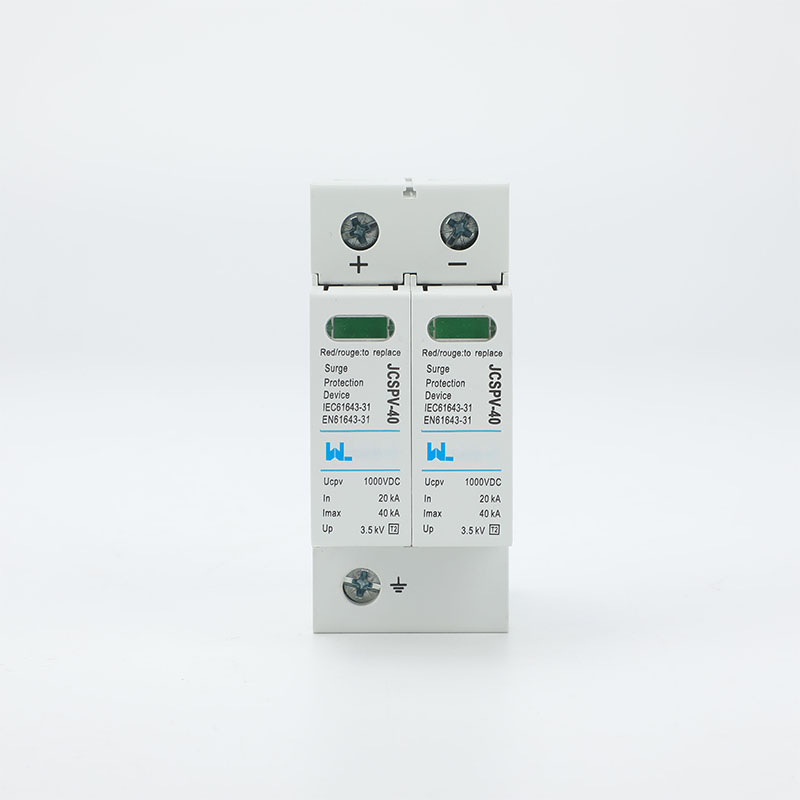

Products such as those under the JCSPV designation are optimized for the demanding DC environment of photovoltaic systems. Their 1000Vdc rated voltage directly matches common PV array voltage levels, ensuring long-term reliability under maximum continuous operating voltage. As a crucial Surge Protector Breaker, it must not only possess high-energy surge absorption capacity but also feature low voltage protection levels and rapid response times. This allows it to act within nanoseconds, clamping the overvoltage to a safe range before sensitive equipment is damaged.

Beyond the core surge protection function, a comprehensive PV Surge Protector Breaker typically integrates thermal disconnection and visual warning devices. When the varistor degrades due to prolonged aging or surges exceeding its tolerance, the built-in thermal protection mechanism safely disconnects it from the circuit, preventing fire risk. A mechanical indicator window shows its status, enabling maintenance personnel to quickly identify and replace the faulty module, thereby maintaining the integrity of the entire PV plant’s protection system.

With the increasing prevalence of PV systems, selecting the appropriate Surge Protector Breaker is a key technical decision for safeguarding substantial investments and ensuring long-term returns. A 1000Vdc PV surge protection device, as described, with its reliable common-mode and differential-mode protection capabilities based on varistor technology, builds a robust safety barrier for solar power networks. It is an indispensable component for ensuring system resilience in harsh electrical environments and achieving efficient, stable operation.
